com.codename1.twitterui.views

Class TWTSearchView

java.lang.Object

com.codename1.ui.Component

com.codename1.ui.Container

com.codename1.rad.ui.AbstractEntityView

com.codename1.twitterui.views.TWTSearchView

All Implemented Interfaces:

Bindable, Activatable, EntityView, Animation, Editable, StyleListener, Iterable<Component>

public class TWTSearchView
extends AbstractEntityView

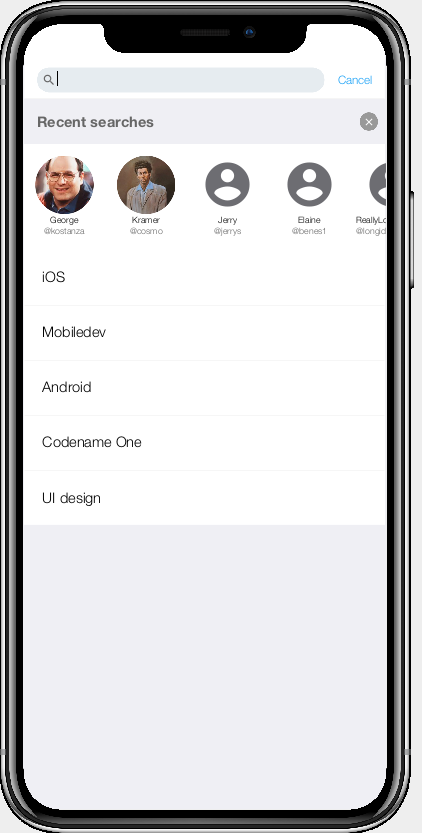

View for the twitter search form including the search field and autocomplete suggestions and recent searches.

View Model

The view model should conform to the TWTSearch schema. This schema includes properties which are lists of results.

Example View Model

private static class ViewModel extends Entity {
       private static final EntityType TYPE = new EntityType() {{
           string(tags(query));
           list(EntityList.class, tags(autocompleteKeywords));
           list(EntityList.class, tags(autocompleteProfiles));
           list(EntityList.class, tags(recentSearchKeywords));
           list(EntityList.class, tags(recentSearchProfiles));
       }};
       {
           setEntityType(TYPE);
           set(query, "");
           set(autocompleteKeywords, new EntityList());
           set(autocompleteProfiles, new EntityList());
           set(recentSearchKeywords, new EntityList());
           set(recentSearchProfiles, new EntityList());
       }
   }

   ....

   private static ViewModel createViewModel() {
       ViewModel model = new ViewModel();
       EntityList recentKeywords = model.getEntityList(recentSearchKeywords);
       for (String kw : new String[]{"iOS", "Mobiledev", "Android", "Codename One", "UI design"}) {
           recentKeywords.add(createKeyword(kw));
       }

       EntityList recentProfiles = model.getEntityList(recentSearchProfiles);
       recentProfiles.add(createProfile("George", "@kostanza", "https://weblite.ca/cn1tests/radchat/george.jpg"));
       recentProfiles.add(createProfile("Kramer", "@cosmo", "https://weblite.ca/cn1tests/radchat/kramer.jpg"));
       recentProfiles.add(createProfile("Jerry", "@jerrys", null));
       recentProfiles.add(createProfile("Elaine", "@benes1", null));
       recentProfiles.add(createProfile("ReallyLong Name That should get clipped", "@longidshouldbeclipped", null));


       return model;

   }

Actions

1. SEARCH_ACTIONS - Actions rendered to the right of the search field.

2. CLEAR_RECENT_SEARCHES - Action triggered when the user presses the "Clear recent searches" button.

3. CANCEL_ACTION - Action that can be registered to override the default cancel behaviour. Default behaviour is to go back to the previous form.

Styles

1. TWTSearchView - UIID for the component.

2. TWTSearchViewRecentSearchesHeader - UIID for the recent searches header.

3. TWTSearchViewRecentSearchesClearButton - UIID for clear recent searches button.

4. TWTSearchViewRecentSearchesClearButtonCharged - UIID for clear recent searches button when it is "charged". I.e. after user has clicked on it once. This gives the user an option to cancel.

5. TWTSearchViewTitleBar - UIID for the top title bar.

6. TWTSearchAction - UIID for the SEARCH_ACTIONS buttons.

7. TWTSearchViewCancelAction - UIID for the cancel button.

Example

package com.codename1.demos.twitterui;

import com.codename1.twitterui.TwitterUIDemo.AppNavigationEvent;
import com.codename1.rad.controllers.Controller;
import com.codename1.rad.controllers.FormController;
import com.codename1.rad.models.Entity;
import com.codename1.rad.models.EntityList;
import com.codename1.rad.models.EntityType;
import com.codename1.rad.nodes.ViewNode;
import com.codename1.rad.schemas.Thing;
import com.codename1.twitterui.views.TWTSearchView;
import com.codename1.twitterui.schemas.TWTKeyword;
import com.codename1.twitterui.schemas.TWTSearch;
import com.codename1.ui.Form;
import com.codename1.ui.layouts.BorderLayout;


public class SearchFormController extends FormController implements TWTSearch, TWTKeyword {

   public SearchFormController(Controller parent) {
       super(parent);
       Form form = new Form(new BorderLayout());
       TWTSearchView view = new TWTSearchView(createViewModel(), new ViewNode());
       form.getToolbar().hideToolbar();
       form.getContentPane().add(BorderLayout.CENTER, view);
       setView(form);
   }


   private static class ViewModel extends Entity {
       private static final EntityType TYPE = new EntityType() {{
           string(tags(query));
           list(EntityList.class, tags(autocompleteKeywords));
           list(EntityList.class, tags(autocompleteProfiles));
           list(EntityList.class, tags(recentSearchKeywords));
           list(EntityList.class, tags(recentSearchProfiles));
       }};
       {
           setEntityType(TYPE);
           set(query, "");
           set(autocompleteKeywords, new EntityList());
           set(autocompleteProfiles, new EntityList());
           set(recentSearchKeywords, new EntityList());
           set(recentSearchProfiles, new EntityList());
       }
   }

   private static class KeywordModel extends Entity {
       private static final EntityType TYPE = new EntityType() {{
           string(tags(keyword));
       }};
       {
           setEntityType(TYPE);
       }
   }


   private static class ProfileModel extends Entity {
       private static final EntityType TYPE = new EntityType() {{
           string(tags(Thing.name));
           string(tags(Thing.identifier));
           string(tags(Thing.thumbnailUrl));

       }};
       {
           setEntityType(TYPE);
       }
   }
   private static ViewModel createViewModel() {
       ViewModel model = new ViewModel();
       EntityList recentKeywords = model.getEntityList(recentSearchKeywords);
       for (String kw : new String[]{"iOS", "Mobiledev", "Android", "Codename One", "UI design"}) {
           recentKeywords.add(createKeyword(kw));
       }

       EntityList recentProfiles = model.getEntityList(recentSearchProfiles);
       recentProfiles.add(createProfile("George", "@kostanza", "https://weblite.ca/cn1tests/radchat/george.jpg"));
       recentProfiles.add(createProfile("Kramer", "@cosmo", "https://weblite.ca/cn1tests/radchat/kramer.jpg"));
       recentProfiles.add(createProfile("Jerry", "@jerrys", null));
       recentProfiles.add(createProfile("Elaine", "@benes1", null));
       recentProfiles.add(createProfile("ReallyLong Name That should get clipped", "@longidshouldbeclipped", null));


       return model;

   }

   private static KeywordModel createKeyword(String kw) {
       KeywordModel out = new KeywordModel();
       out.setText(keyword, kw);
       return out;
   }

   private static ProfileModel createProfile(String name, String id, String icon) {
       ProfileModel out = new ProfileModel();
       out.setText(Thing.name, name);
       out.setText(Thing.identifier, id);
       out.setText(Thing.thumbnailUrl, icon);
       return out;
   }

   @Override
   public void initController() {
       super.initController();
       dispatchEvent(new AppNavigationEvent(this, AppNavigationViewModel.NavSection.Search));
   }

}

Author:

shannah

Field Summary

Fields

Modifier and Type	Field and Description
static ActionNode.Category	CANCEL_ACTION A cancel action.
static ActionNode.Category	CLEAR_RECENT_SEARCHES Action to handle "clear recent" searches button clicks.
static ActionNode.Category	SEARCH_ACTIONS Actions to be rendered to the right of the search field.

Fields inherited from class com.codename1.ui.Component

BASELINE, BOTTOM, BRB_CENTER_OFFSET, BRB_CONSTANT_ASCENT, BRB_CONSTANT_DESCENT, BRB_OTHER, CENTER, CROSSHAIR_CURSOR, DEFAULT_CURSOR, DRAG_REGION_IMMEDIATELY_DRAG_X, DRAG_REGION_IMMEDIATELY_DRAG_XY, DRAG_REGION_IMMEDIATELY_DRAG_Y, DRAG_REGION_LIKELY_DRAG_X, DRAG_REGION_LIKELY_DRAG_XY, DRAG_REGION_LIKELY_DRAG_Y, DRAG_REGION_NOT_DRAGGABLE, DRAG_REGION_POSSIBLE_DRAG_X, DRAG_REGION_POSSIBLE_DRAG_XY, DRAG_REGION_POSSIBLE_DRAG_Y, E_RESIZE_CURSOR, HAND_CURSOR, LEFT, MOVE_CURSOR, N_RESIZE_CURSOR, NE_RESIZE_CURSOR, NW_RESIZE_CURSOR, RIGHT, S_RESIZE_CURSOR, SE_RESIZE_CURSOR, SW_RESIZE_CURSOR, TEXT_CURSOR, TOP, W_RESIZE_CURSOR, WAIT_CURSOR

Constructor Summary

Constructors

Constructor and Description
TWTSearchView(Entity entity, ViewNode node)

Method Summary

Modifier and Type	Method and Description
void	commit()
protected void	deinitialize()
Node	getViewNode()
protected void	initComponent()
void	update()

Methods inherited from class com.codename1.rad.ui.AbstractEntityView

activate, addBindListener, addUnbindListener, addUpdateListener, bind, bindImpl, findProperty, getContext, getEntity, getParam, isBindOnPropertyChangeEvents, removeUpdateListener, setBindOnPropertyChangeEvents, setEntity, unbind, unbindImpl

Methods inherited from class com.codename1.ui.Container

add, add, add, add, add, add, addAll, addComponent, addComponent, addComponent, addComponent, animateHierarchy, animateHierarchyAndWait, animateHierarchyFade, animateHierarchyFadeAndWait, animateLayout, animateLayoutAndWait, animateLayoutFade, animateLayoutFadeAndWait, animateUnlayout, animateUnlayoutAndWait, applyRTL, calcPreferredSize, cancelRepaints, clearClientProperties, constrainHeightWhenScrollable, constrainWidthWhenScrollable, contains, createAnimateHierarchy, createAnimateHierarchyFade, createAnimateLayout, createAnimateLayoutFade, createAnimateLayoutFadeAndWait, createAnimateMotion, createAnimateUnlayout, createReplaceTransition, dragInitiated, drop, encloseIn, encloseIn, findDropTargetAt, findFirstFocusable, fireClicked, flushReplace, forceRevalidate, getBottomGap, getChildrenAsList, getClosestComponentTo, getComponentAt, getComponentAt, getComponentCount, getComponentIndex, getGridPosX, getGridPosY, getLayout, getLayoutHeight, getLayoutWidth, getLeadComponent, getLeadParent, getResponderAt, getSafeAreaRoot, getScrollIncrement, getSideGap, getUIManager, initLaf, invalidate, isEnabled, isSafeArea, isSafeAreaRoot, isScrollableX, isScrollableY, isSelectableInteraction, iterator, iterator, keyPressed, keyReleased, layoutContainer, morph, morphAndWait, paint, paintComponentBackground, paintGlass, paramString, pointerPressed, refreshTheme, removeAll, removeComponent, replace, replace, replaceAndWait, replaceAndWait, replaceAndWait, revalidate, revalidateLater, revalidateWithAnimationSafety, scrollComponentToVisible, setCellRenderer, setEnabled, setLayout, setLeadComponent, setSafeArea, setSafeAreaRoot, setScrollable, setScrollableX, setScrollableY, setScrollIncrement, setShouldCalcPreferredSize, setShouldLayout, setUIManager, updateTabIndices

Methods inherited from class com.codename1.ui.Component

addDragFinishedListener, addDragOverListener, addDropListener, addFocusListener, addLongPressListener, addPointerDraggedListener, addPointerPressedListener, addPointerReleasedListener, addPullToRefresh, addScrollListener, addStateChangeListener, animate, bindProperty, blocksSideSwipe, calcScrollSize, contains, containsOrOwns, createStyleAnimation, deinitializeCustomStyle, dragEnter, dragExit, dragFinished, draggingOver, drawDraggedImage, focusGained, focusLost, getAbsoluteX, getAbsoluteY, getAllStyles, getAnimationManager, getBaseline, getBaselineResizeBehavior, getBindablePropertyNames, getBindablePropertyTypes, getBorder, getBoundPropertyValue, getBounds, getBounds, getClientProperty, getCloudBoundProperty, getCloudDestinationProperty, getComponentForm, getComponentState, getCursor, getDirtyRegion, getDisabledStyle, getDraggedx, getDraggedy, getDragImage, getDragRegionStatus, getDragSpeed, getEditingDelegate, getHeight, getInlineAllStyles, getInlineDisabledStyles, getInlinePressedStyles, getInlineSelectedStyles, getInlineStylesTheme, getInlineUnselectedStyles, getInnerHeight, getInnerPreferredH, getInnerPreferredW, getInnerWidth, getInnerX, getInnerY, getLabelForComponent, getName, getNativeOverlay, getNextFocusDown, getNextFocusLeft, getNextFocusRight, getNextFocusUp, getOuterHeight, getOuterPreferredH, getOuterPreferredW, getOuterWidth, getOuterX, getOuterY, getOwner, getParent, getPreferredH, getPreferredSize, getPreferredSizeStr, getPreferredTabIndex, getPreferredW, getPressedStyle, getPropertyNames, getPropertyTypeNames, getPropertyTypes, getPropertyValue, getSameHeight, getSameWidth, getScrollable, getScrollAnimationSpeed, getScrollDimension, getScrollOpacity, getScrollOpacityChangeSpeed, getScrollX, getScrollY, getSelectCommandText, getSelectedRect, getSelectedStyle, getStyle, getTabIndex, getTensileLength, getTextSelectionSupport, getTooltip, getUIID, getUnselectedStyle, getVisibleBounds, getVisibleBounds, getWidth, getX, getY, growShrink, handlesInput, hasFixedPreferredSize, hasFocus, hideNativeOverlay, initCustomStyle, installDefaultPainter, isAlwaysTensile, isBlockLead, isCellRenderer, isChildOf, isDragActivated, isDragAndDropOperation, isDraggable, isDragRegion, isDropTarget, isEditable, isEditing, isFlatten, isFocusable, isGrabsPointerEvents, isHidden, isHidden, isHideInLandscape, isHideInPortrait, isIgnorePointerEvents, isInClippingRegion, isInitialized, isOpaque, isOwnedBy, isRippleEffect, isRTL, isScrollable, isScrollVisible, isSetCursorSupported, isSmoothScrolling, isSnapToGrid, isStickyDrag, isTactileTouch, isTactileTouch, isTensileDragEnabled, isTraversable, isVisible, keyRepeated, laidOut, longKeyPress, longPointerPress, onScrollX, onScrollY, paintBackground, paintBackgrounds, paintBorder, paintBorderBackground, paintComponent, paintComponent, paintIntersectingComponentsAbove, paintLock, paintLockRelease, paintRippleOverlay, paintScrollbars, paintScrollbarX, paintScrollbarY, parsePreferredSize, pinch, pinchReleased, pointerDragged, pointerDragged, pointerHover, pointerHoverPressed, pointerHoverReleased, pointerPressed, pointerReleased, pointerReleased, putClientProperty, refreshTheme, refreshTheme, remove, removeDragFinishedListener, removeDragOverListener, removeDropListener, removeFocusListener, removeLongPressListener, removePointerDraggedListener, removePointerPressedListener, removePointerReleasedListener, removeScrollListener, removeStateChangeListener, repaint, repaint, requestFocus, resetFocusable, respondsToPointerEvents, scrollRectToVisible, scrollRectToVisible, setAlwaysTensile, setBlockLead, setBoundPropertyValue, setCloudBoundProperty, setCloudDestinationProperty, setComponentState, setCursor, setDirtyRegion, setDisabledStyle, setDraggable, setDropTarget, setEditingDelegate, setFlatten, setFocus, setFocusable, setGrabsPointerEvents, setHandlesInput, setHeight, setHidden, setHidden, setHideInLandscape, setHideInPortrait, setIgnorePointerEvents, setInitialized, setInlineAllStyles, setInlineDisabledStyles, setInlinePressedStyles, setInlineSelectedStyles, setInlineStylesTheme, setInlineUnselectedStyles, setIsScrollVisible, setLabelForComponent, setName, setNextFocusDown, setNextFocusLeft, setNextFocusRight, setNextFocusUp, setOpaque, setOwner, setPreferredH, setPreferredSize, setPreferredSizeStr, setPreferredTabIndex, setPreferredW, setPressedStyle, setPropertyValue, setRippleEffect, setRTL, setSameHeight, setSameSize, setSameWidth, setScrollAnimationSpeed, setScrollOpacityChangeSpeed, setScrollSize, setScrollVisible, setScrollX, setScrollY, setSelectCommandText, setSelectedStyle, setSize, setSmoothScrolling, setSnapToGrid, setTabIndex, setTactileTouch, setTensileDragEnabled, setTensileLength, setTooltip, setTraversable, setUIID, setUIID, setUnselectedStyle, setVisible, setWidth, setX, setY, shouldBlockSideSwipe, shouldRenderComponentSelection, showNativeOverlay, startEditingAsync, stopEditing, stripMarginAndPadding, styleChanged, toImage, toString, unbindProperty, updateNativeOverlay, visibleBoundsContains

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface java.lang.Iterable

forEach, spliterator

Field Detail

SEARCH_ACTIONS

public static final ActionNode.Category SEARCH_ACTIONS

Actions to be rendered to the right of the search field.

CLEAR_RECENT_SEARCHES

public static final ActionNode.Category CLEAR_RECENT_SEARCHES

Action to handle "clear recent" searches button clicks.

CANCEL_ACTION

public static final ActionNode.Category CANCEL_ACTION

A cancel action. Register this action to override the behaviour of the cancel button. IF this is not registered, then the default behaviour will be used, which will be to navigate back to the previous form.

Constructor Detail

TWTSearchView

public TWTSearchView(Entity entity,
                     ViewNode node)

Method Detail

update

public void update()

commit

public void commit()

getViewNode

public Node getViewNode()

Specified by:

getViewNode in interface EntityView

Overrides:

getViewNode in class AbstractEntityView

initComponent

protected void initComponent()

Overrides:

initComponent in class AbstractEntityView

deinitialize

protected void deinitialize()

Overrides:

deinitialize in class AbstractEntityView
